Elan Double Skin Steel Partitioning

Elan is a high-quality double skin steel partitioning system. It can be used in a hugely wide range of applications, especially where appearance and safety are the focus. Elan's aesthetic properties make it very appealing for a multitude of working environments, like factory partitioning, museum displays, and lab offices.

About Elan Double Skin Partitioning

Double Skin Partitions: For aesthetics and safety

Our Elan Double Skin Partitioning Systems are available in both non-fire and fire rated versions; please contact us for more information.

Elan's aesthetic and physical properties make it very appealing for a wide range of working environments, such as factory partitioning, museum display areas, laboratory offices and so on.

It is very cost-effective and versatile solution.

Please get in touch if you have any more questions.

Download Brochure (6MB)

Elan Panels

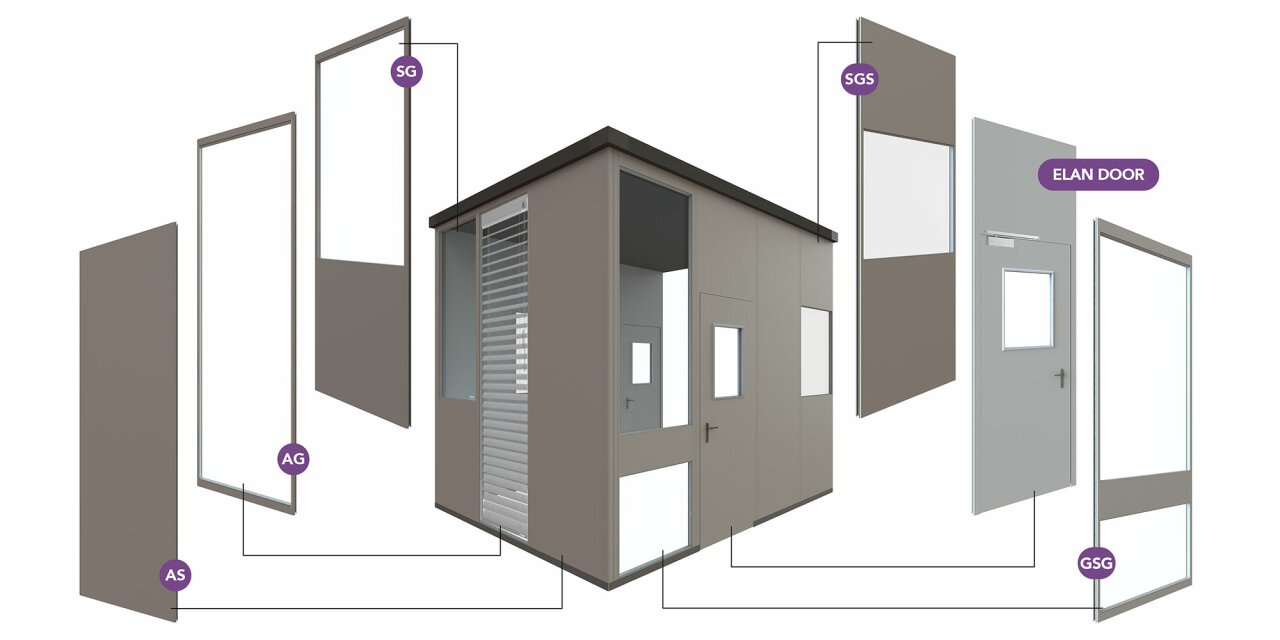

AS (all steel), SG (steel glass), GSG (glass-steel-glass) and SGS (steel-glass-steel) panels all come in the standard sizes shown. A width of 1000mm is available if the height is below 2438mm.

AG (all glass) panels have less height options, however have the same width availability.

Fire Rating and Acoustics

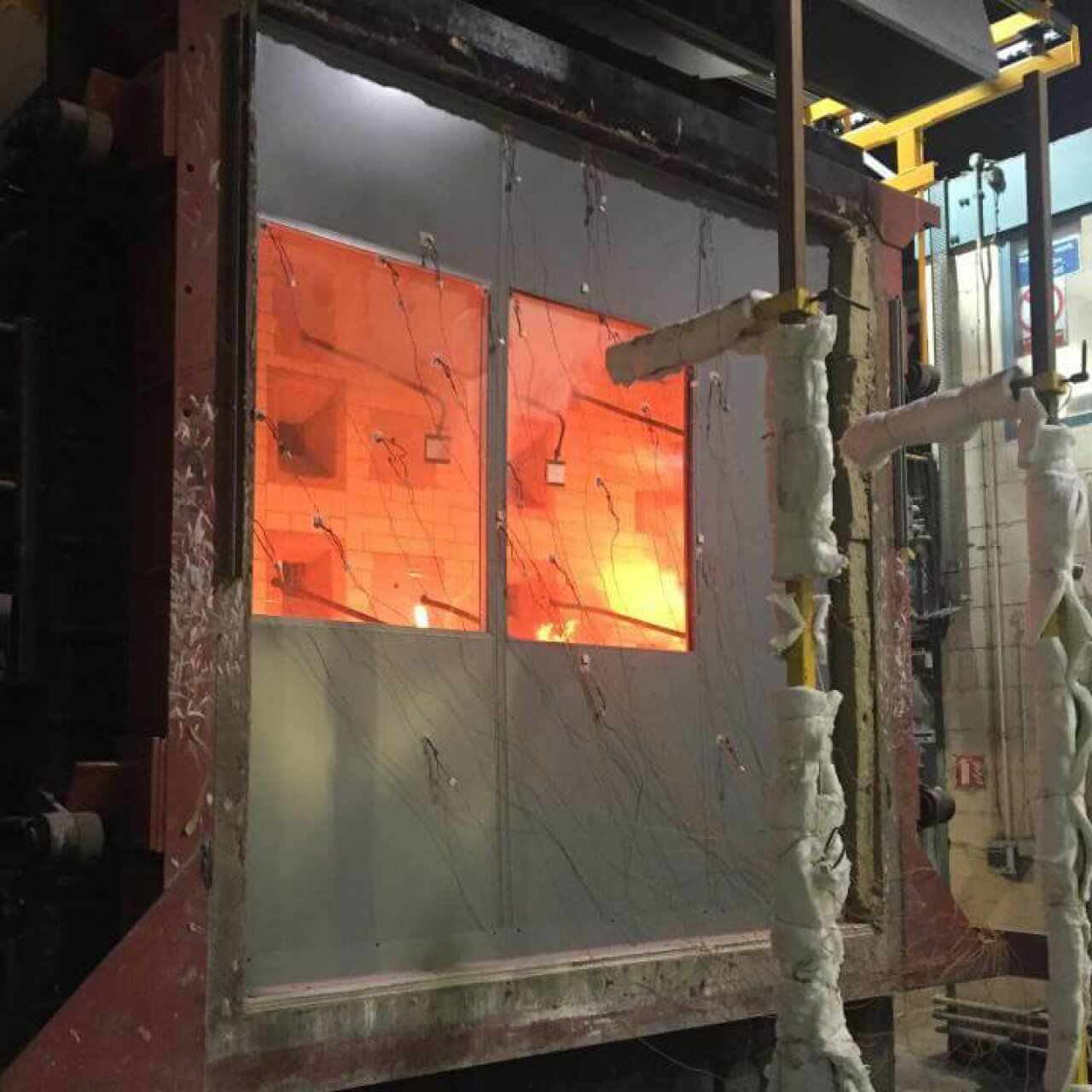

Elan is available in both non fire rated and fire rated configurations. Our fire rated panels are filled with mineral wool and have been tested to BS 476: Part 22:1987. They have fire ratings of up to 1 hour, depending on the specific panel configuration.

Accoustic enhancement is also available for Elan double skin steel partitioning. The mineral wool can also provide noise reduction capabilities of up to 36dB.

Please get in touch if you have any questions.

Elan Colour Finishes

We prepare our products to the highest quality, and all of our panels are supplied with a TGIC lead-free powder coat. This will be to an average thickness of 70 microns.

There are also non-standard and corporate colours available, as well as anti-static/electro dissipative and antimicrobial powder coatings. Please contact us to find out more.

* RAL 9006 available at an extra cost

Colour options - BG.

Features of Double Skin Steel Partitioning

Integrated blinds are available

These are controlled with a portable dial - keeping the panel face free from unnecessary clutter.

Noise reduction capabilities

Noise reduction capabilities can also be offered with potential noise reduction of up to 36dB.

Completely demountable

Completely demountable, enabling one panel to be removed without having to dismantle the whole enclosure.

Fire rated panels available

Panels can be supplied in a fire-rated version to BS476: Part 22:1987.

Our Process

Starting a single skin steel partitioning project can seem like a daunting prospect so we’ve made the process as simple and reassuring as possible to ensure minimal impact to your existing workflows.


Survey & Consultation

Ideally, we begin with a survey of your premises, enabling us to see how you work, take measurements and discuss different options in person with you. However, if this isn’t possible then we can normally gain most of the information needed over the phone.

mezzanine floor handover.


Following on from the site survey we will deliver our proposal & recommendations based on your requirements and anticipated future goals.



Based on the agreement of your proposal we begin the final design process, submitting detailed drawings for your approval and sign off.

Process - Design.


Each project has a dedicated project manager who will work with you to plan dates and to provide you with H&S documentation. Our qualified installation teams will then complete the project.

Process - Installation.


We pride ourselves on the quality of our products and installations. We handover each project with all relevant documentation, training and certification.
