Secure Machinery With Machine Guarding

About Machine Guarding

Warehouses and factories have extremely advanced equipment and processes which places significant demands on safety. In particular, there is a regulated need for controlled access for authorised personnel.

Based on the results of your risk analysis you can select a mesh system based on the impact level which it must be able to sustain, how quick your access to the machinery needs to be and what type of visibility you need in the area.

We test our systems to ensure their functions and to guarantee our internationally known quality. Our machine guarding systems are designed and produced in accordance with the requirements of the European Machinery Directive, the American ANSI/RIA standards and the Canadian CSA standards.

Download Brochure (5MB)

Types of Machine Guarding

Smart Fix

The best selling machine guarding system - extremely versatile, durable and fits most applications. Tested to withstand an impact of 2000 joules with the most common ST20 panels.

Strong Fix

The strongest machine guarding we provide, perfect for high risk environments. In standard configuration it's tested to withstand and impact of 3000 joules but this can be increased to over 8000 depending on the quality of the floor it's fitted to.

Rapid Fix

Our clever safety system that provides quick and easy access to the enclosed area. Tested to 1600 joules the system can be disassembled from inside the cage using a special tool.

Door & Locks

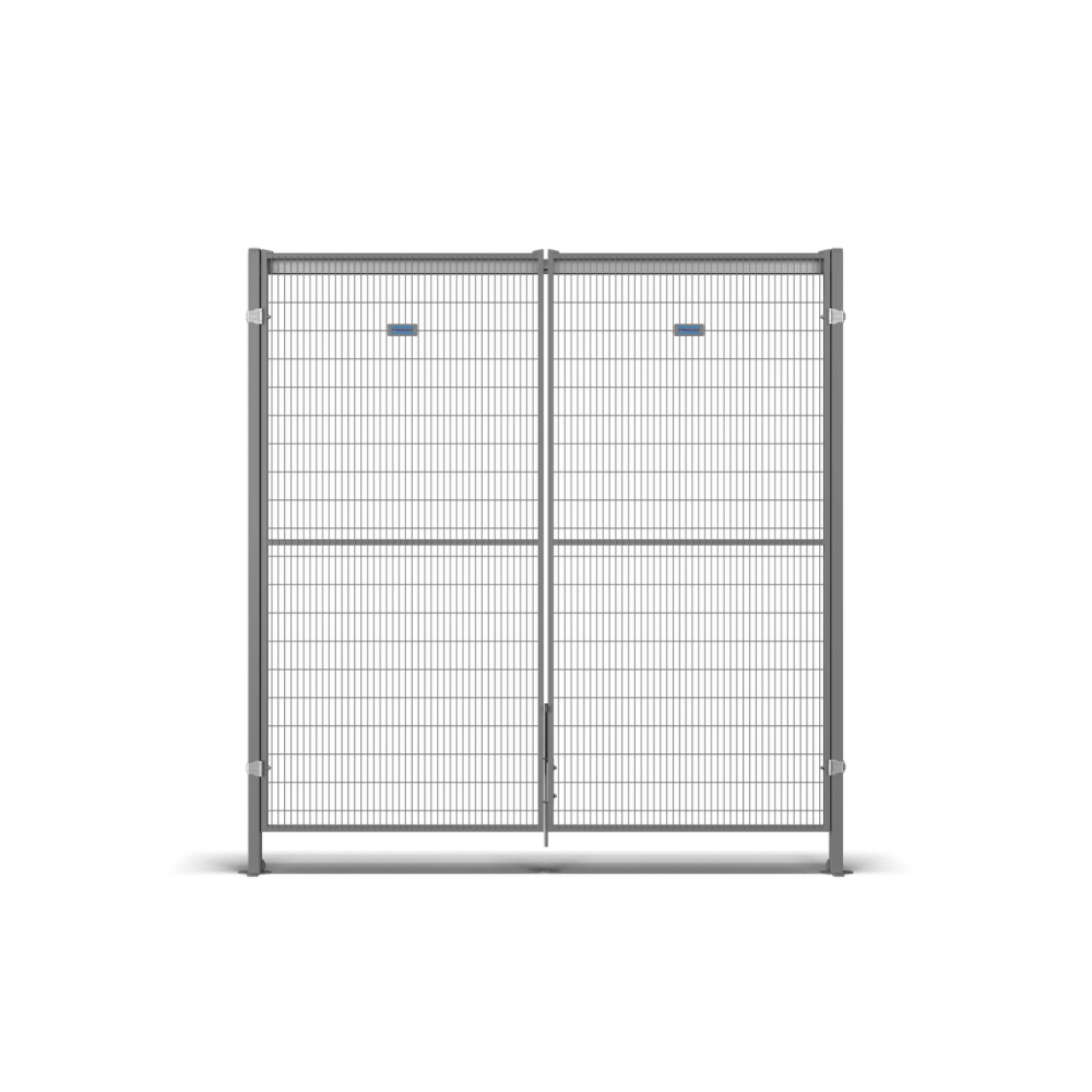

Doors

We offer several types of door from hinged, telescopic, sliding, vertical and linear doors.

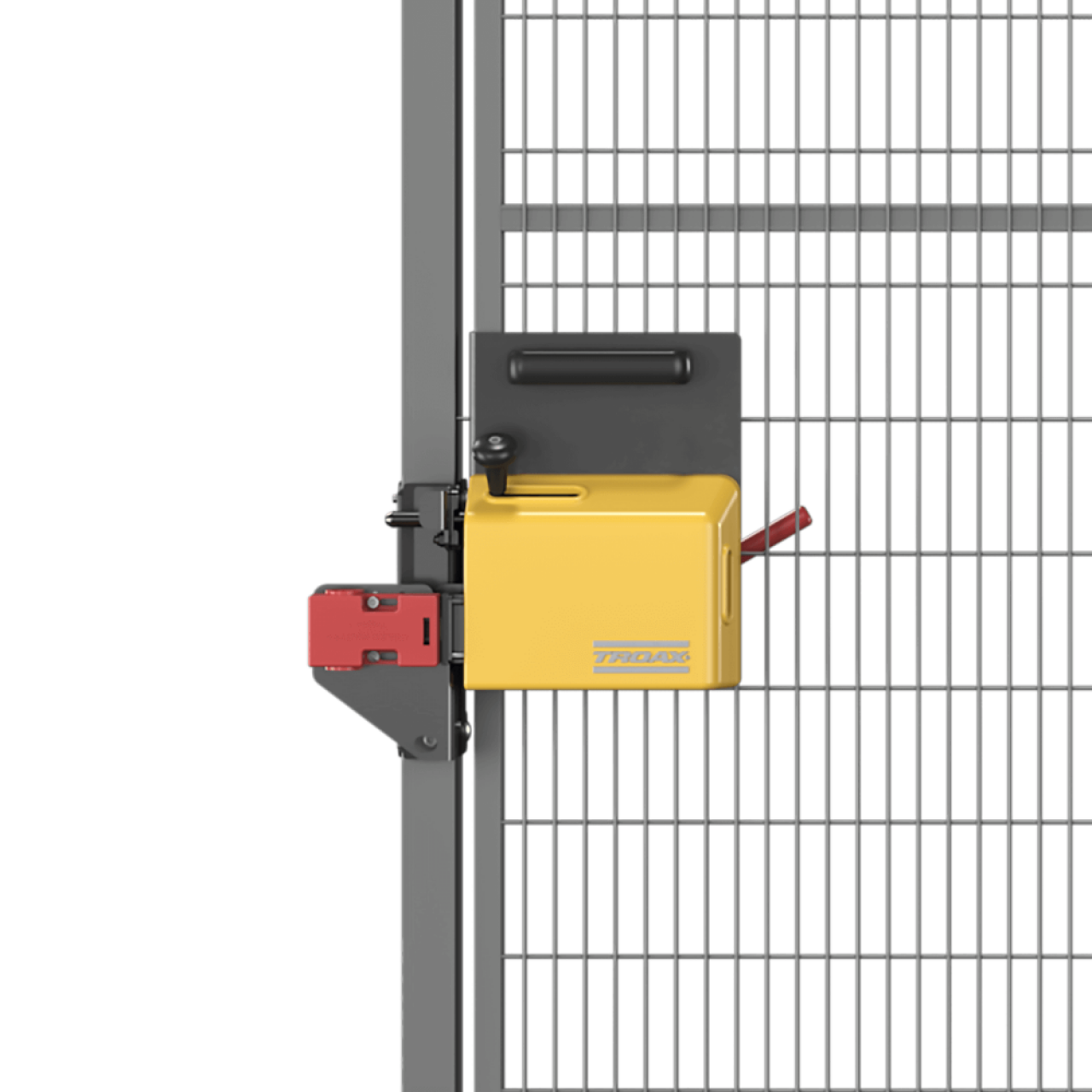

Safe Locks

Fits all door variants and can be equipped with the safety switch of your choice.

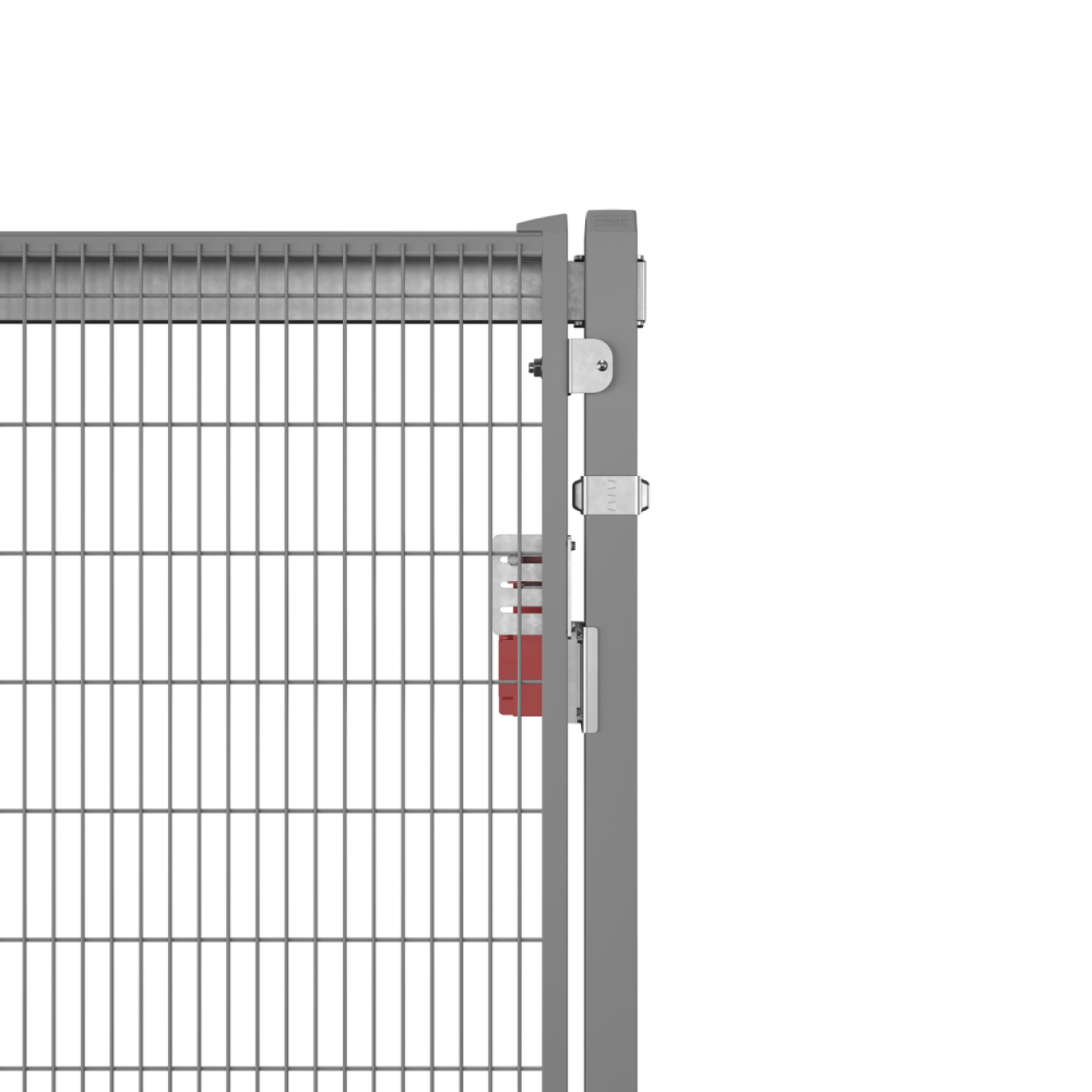

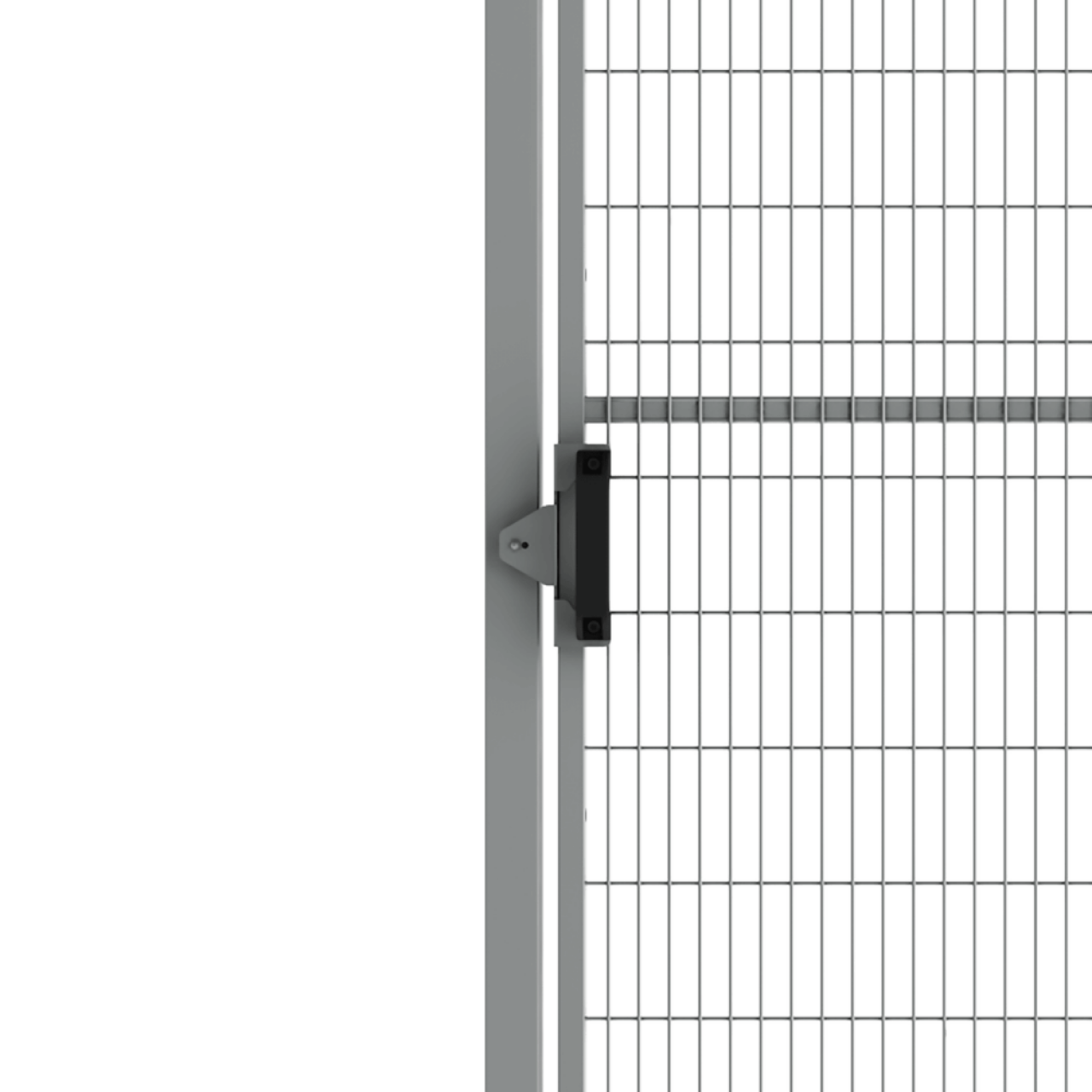

Magnetic Lock

A strong plastic handle mounted to the door blade.

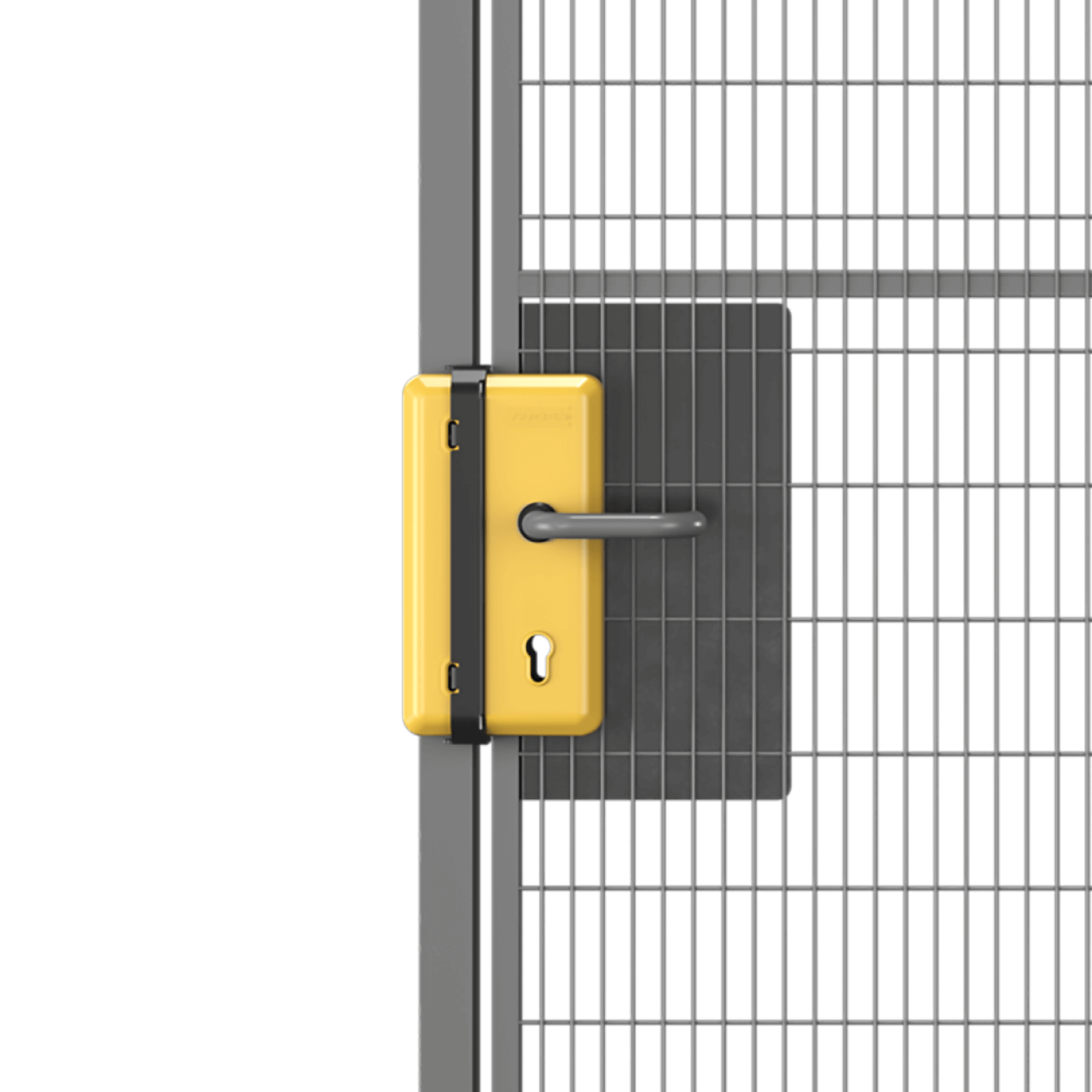

Euro Cylinder Lock

A strong metal locking tube to be equipped with a euro cylinder locking.

Safe Escape Lock

With possibility to integrate a non-contact safety switch.

Machine Guarding Euro Cylinder Safety Lock.

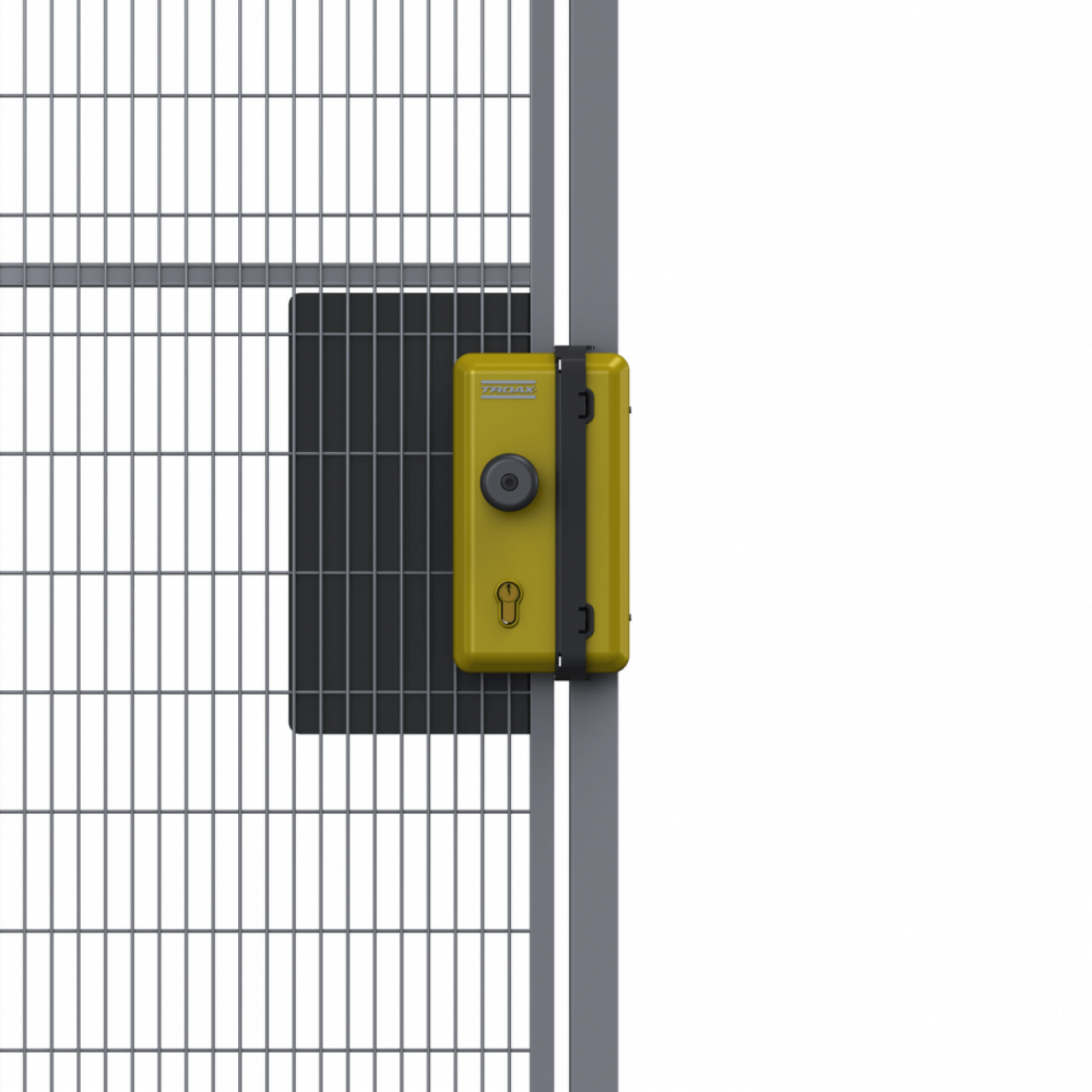

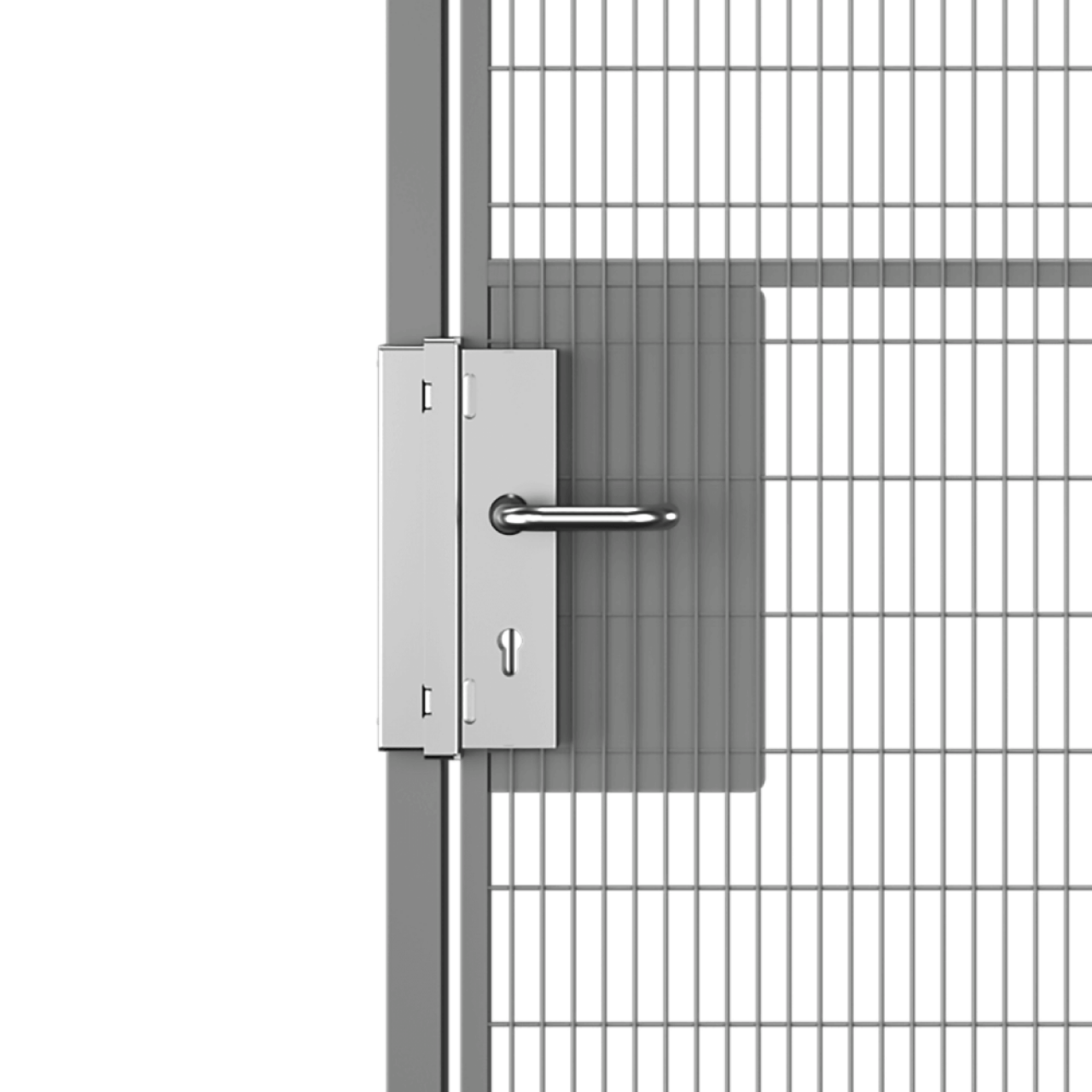

Safety Euro Lock

With room for an integrated non-contact safety switch.

Bracket for Switches

Easy to fit brackets for many variants of safety switches.

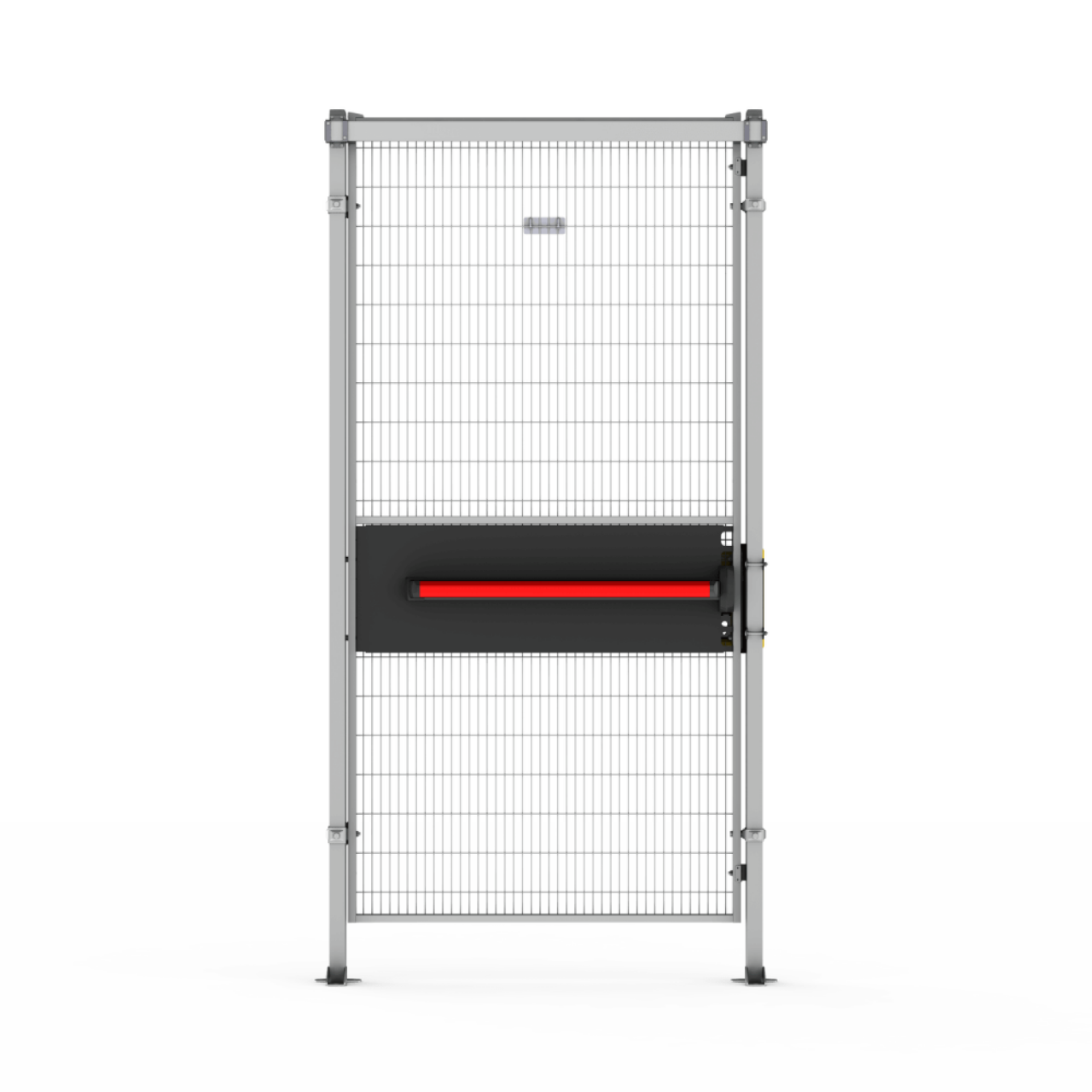

Panic Bars

High quality euro cylinder lock with a panic bar escape release mechanism.

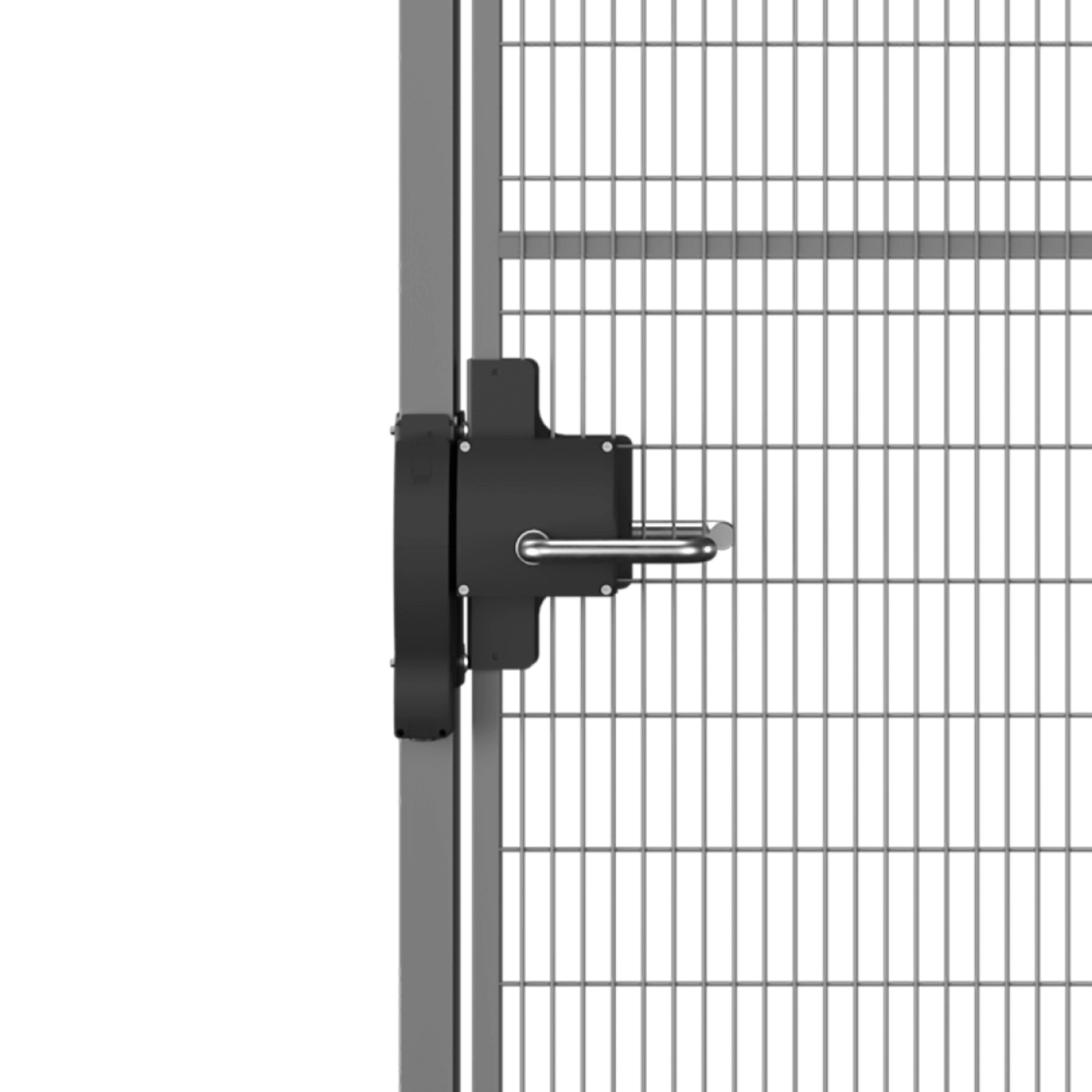

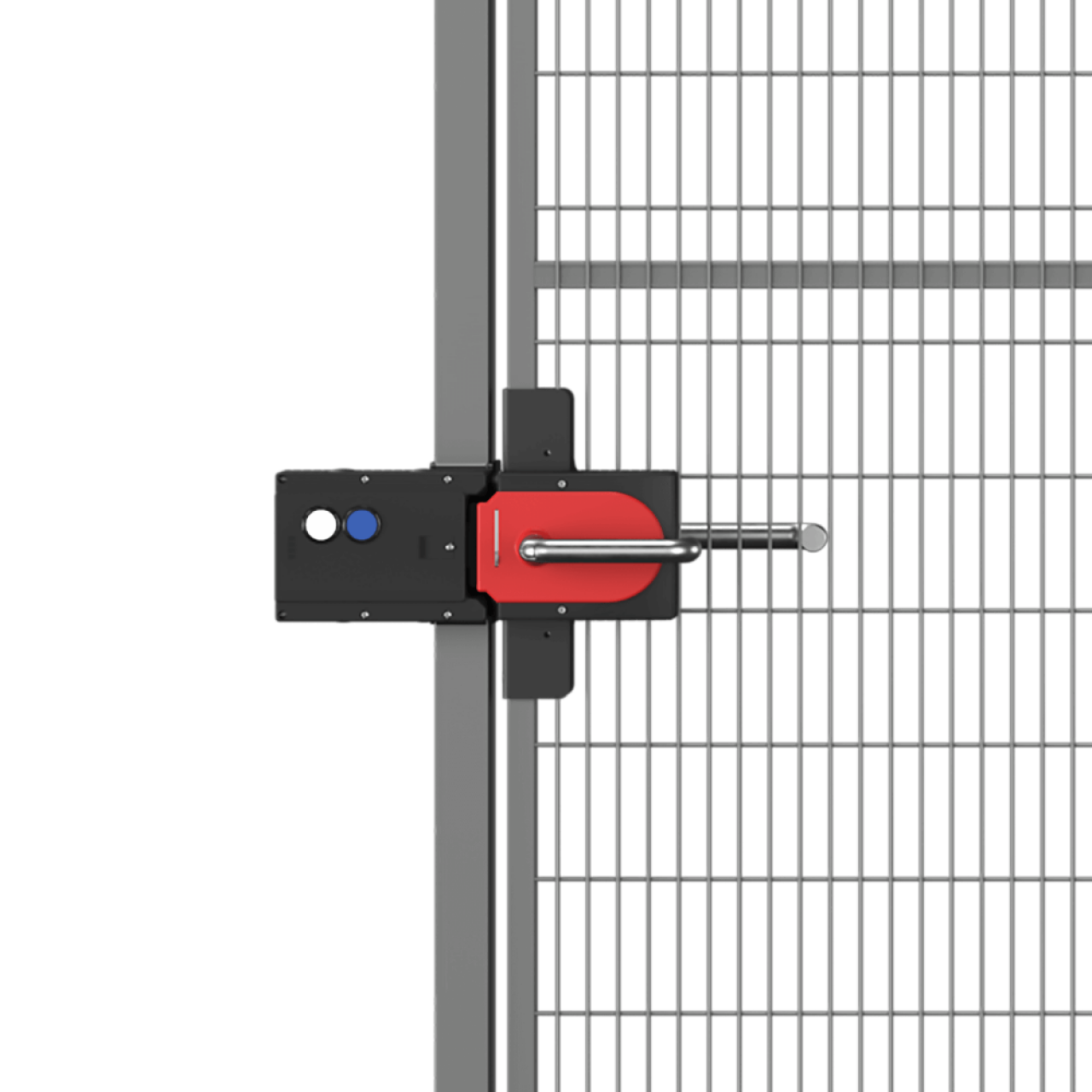

Euchner MGB, MGB-PN

Brackets that will fit all variants on all types of doors.

SCHMERSAL AZM201

Brackets to fit many types of AZM on many variants of doors.

Troax Strength

The Strength Is In The Details.

Troax's specialised manufacturing creates unique profiled tubing and strong welds that provide extremely high levels of impact protection.

The horizontal tubes unique profiled tubing is designed to make the welding stronger and allows the mesh to sit flat. Whilst all horizontal wires are individually welded to the frame, this creates a single extremely strong panel.

Design

Once we've completed a site survey or received enough information via a call we will be able to design a machine guarding solution for you.

As part of your quote we can provide a 2D technical drawing and 3D visual.

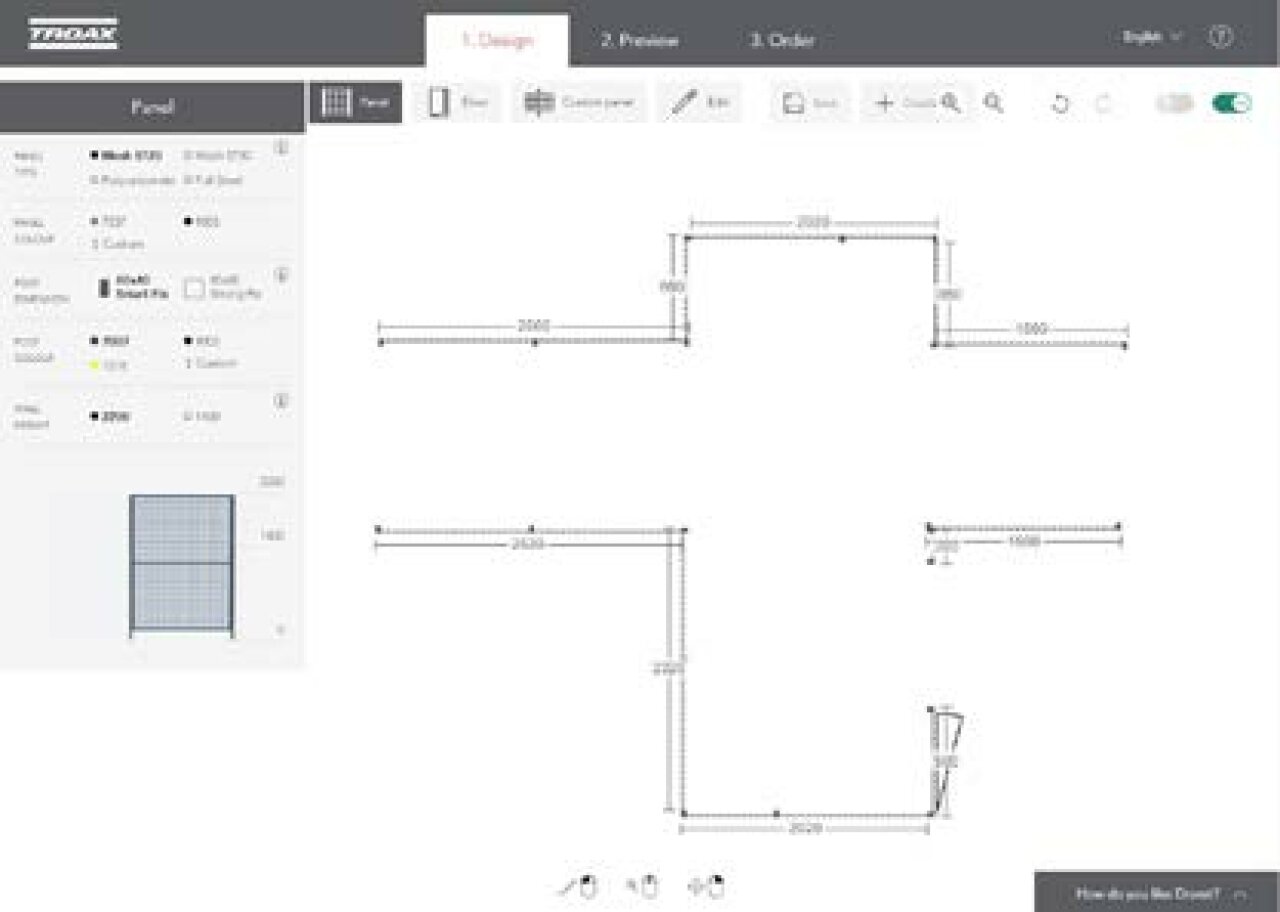

Troax Machine Guarding Design Software 2D.

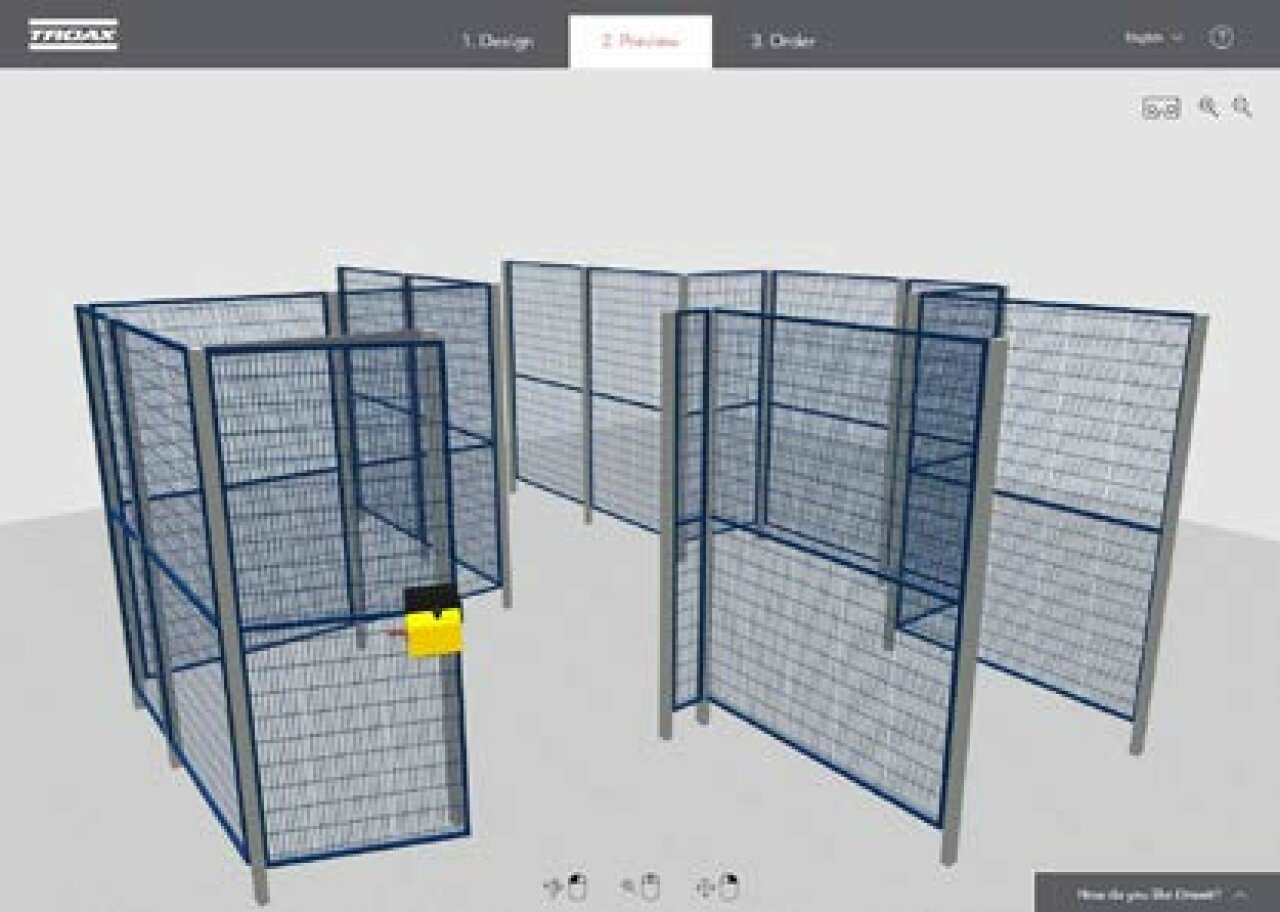

Troax Machine Guarding Design 3D Software.

New Product

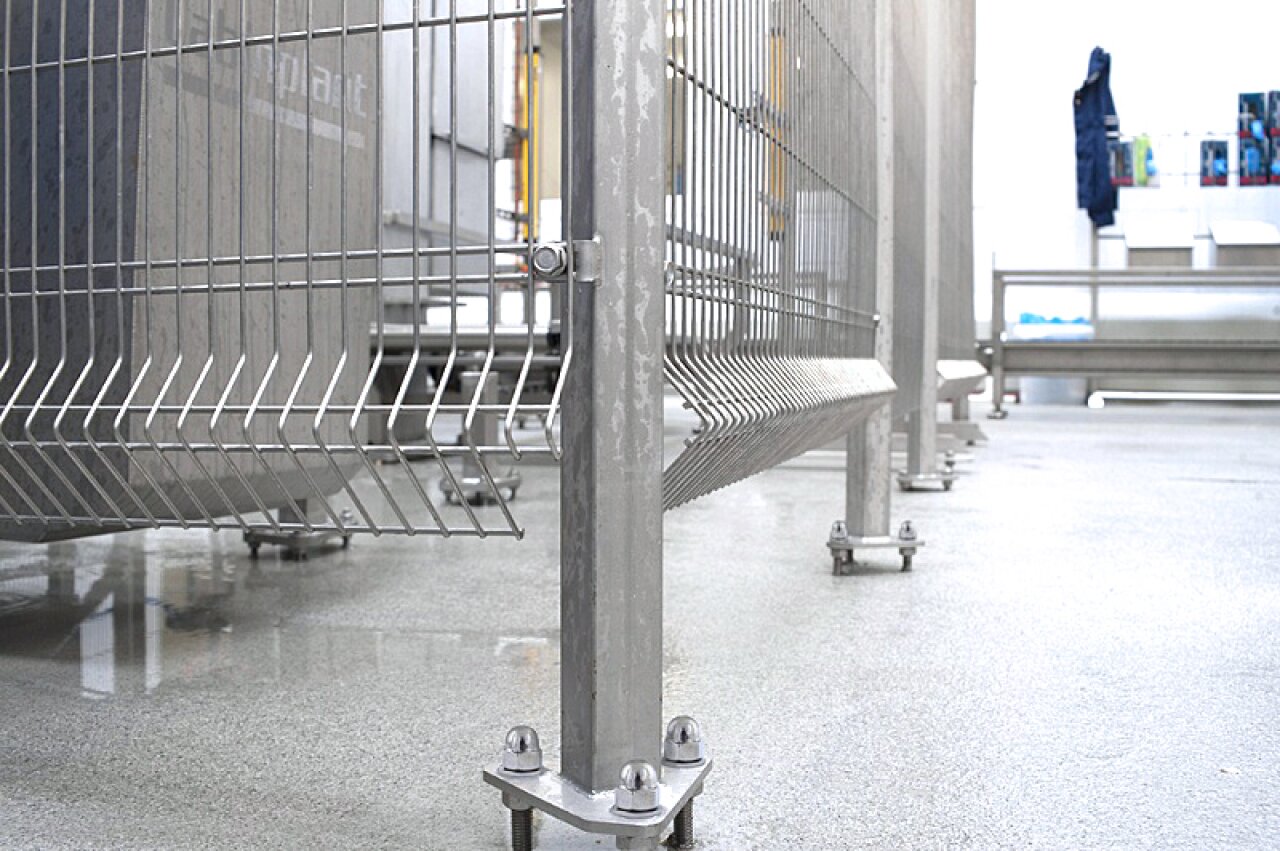

Hygienic Stainless Steel Guarding

Competition-Line from NTF-Aalborg is a hygienic modular system in stainless steel, designed to combine hygiene and safety.

Hygienic Stainless Steel Machine Guarding

Hygienic Stainless Steel Mesh Partitioning.

Our Process

Starting a machine guarding project can seem like a daunting prospect so we’ve made the process as simple and reassuring as possible to ensure minimal impact to your existing workflows.

01

Survey & Consultation

Ideally, we begin with a survey of your premises, enabling us to see how you work, take measurements and discuss different options in person with you. However, if this isn’t possible then we can normally gain most of the information needed over the phone.
