Bastion Single Skin Steel Partitioning

Bastion is an economic heavy-duty angle-framed single skin partitioning system with superb strength and adaptability.

Heavy Duty Angled Frame Partitioning

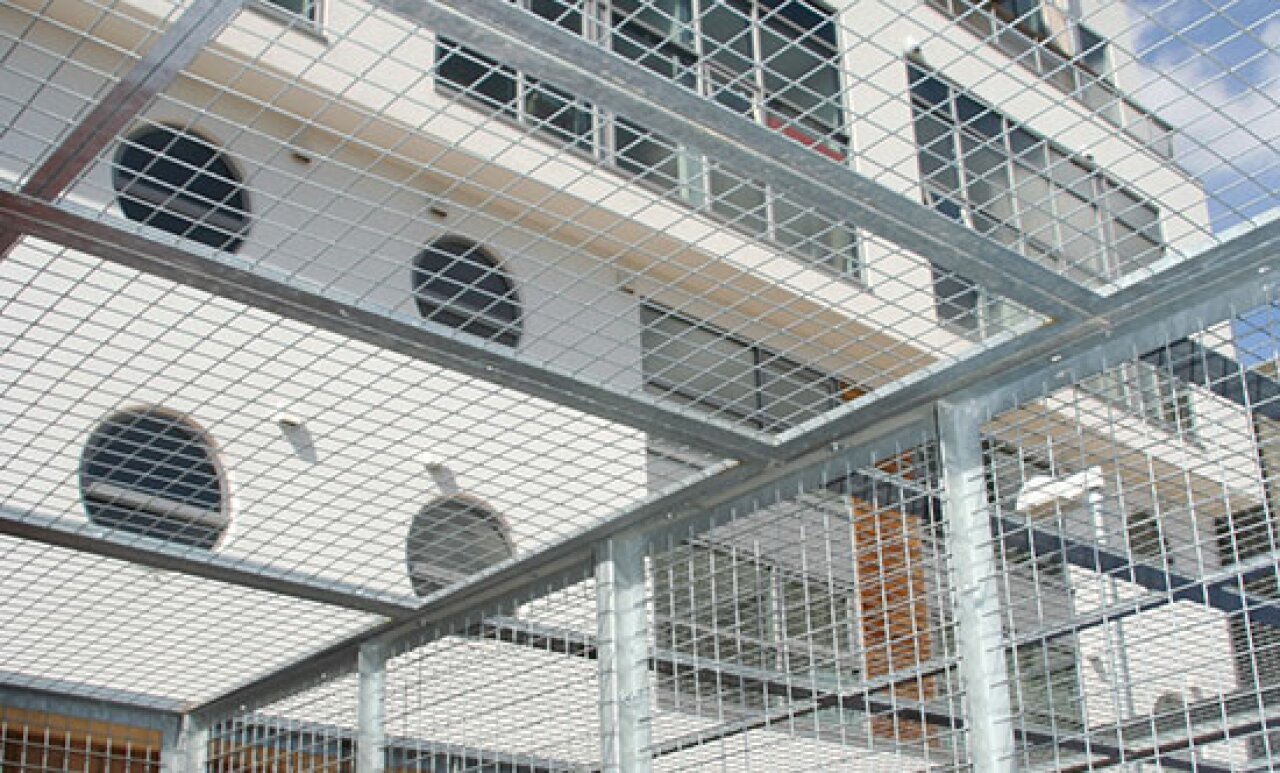

Its robust angle frame makes it an ideal choice for creating a highly secure perimeter. Bastion is the answer when it comes to creating a secure environment.

The welded combination of our steel and mesh sheets make it very resistant to attack. Bastion is one of our most popular ranges, providing cost-effective security.

Download The Brochure (6MB)

Benefits of Bastion

Fast Installation

Rapid installation/adaptability and relocation.


Can be tailored to fit into existing building layouts, blending in seamlessly with the working environment.


Great structural strength, bolted straight into the floor.


Prevents enclosed areas from intrusion, thus providing a high level of security.


Can be multi-tiered to create a truly demountable system that is ideal for any dynamic workspace.

Bastion Panel Types

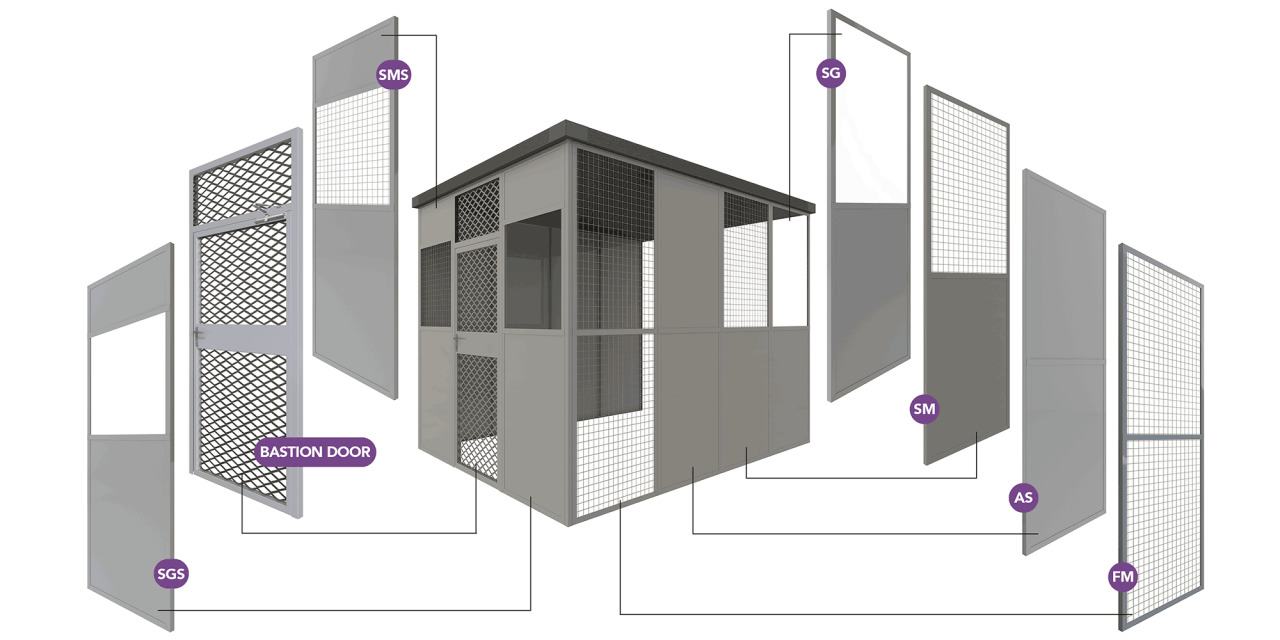

Bastion is available in six different configurations: AS (all steel), FM (full mesh), SG (steel glass), SMS (steel-mesh-steel), SGS (steel-glass-steel) and SM (steel mesh).

Where the panel is required with mesh, various mesh options are available.

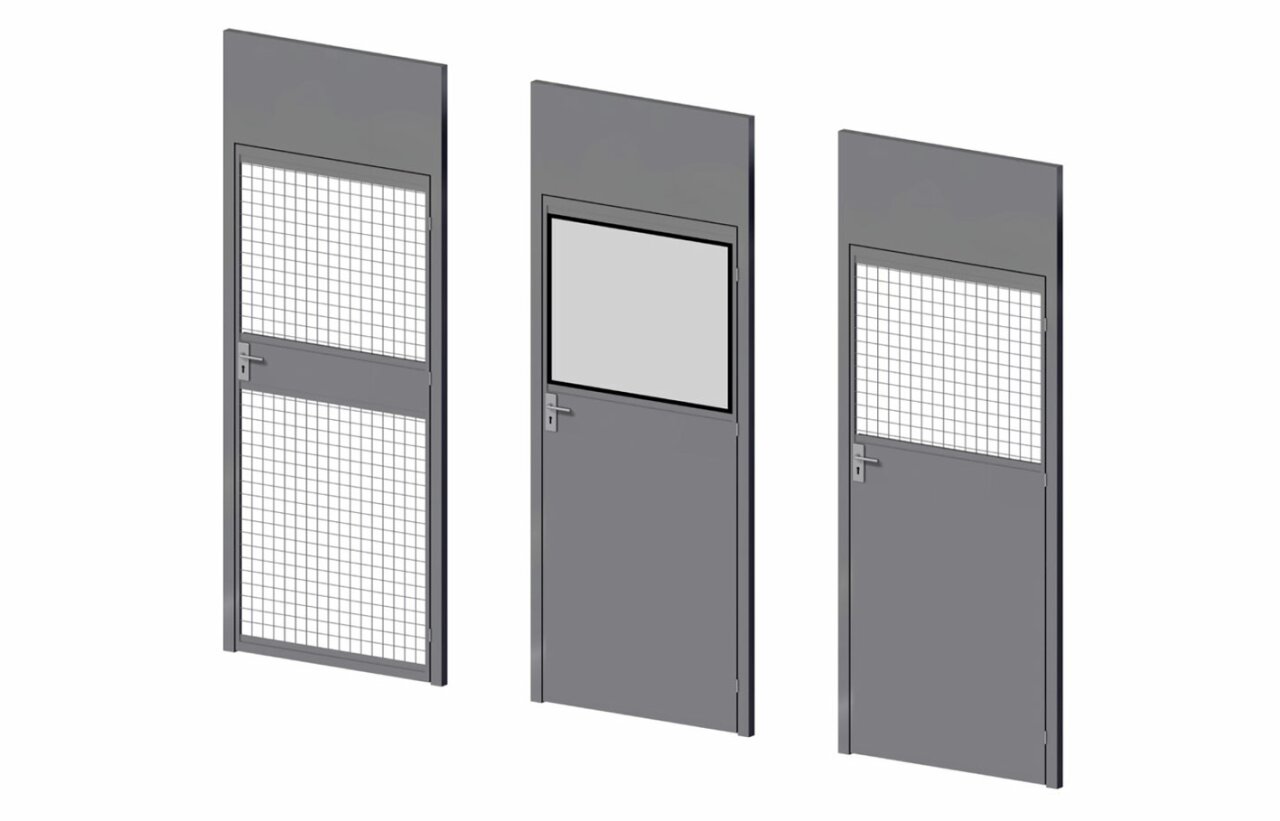

Bastion panels and doors.

Bastion Standard Sizes

Standard panel sizes include:


  • 2440mm

  • 2742mm

  • 3000mm


  • 300mm

  • 400mm

  • 500mm

  • 600mm

  • 700mm

  • 800mm

  • 900mm

  • 1000mm

  • 1200mm

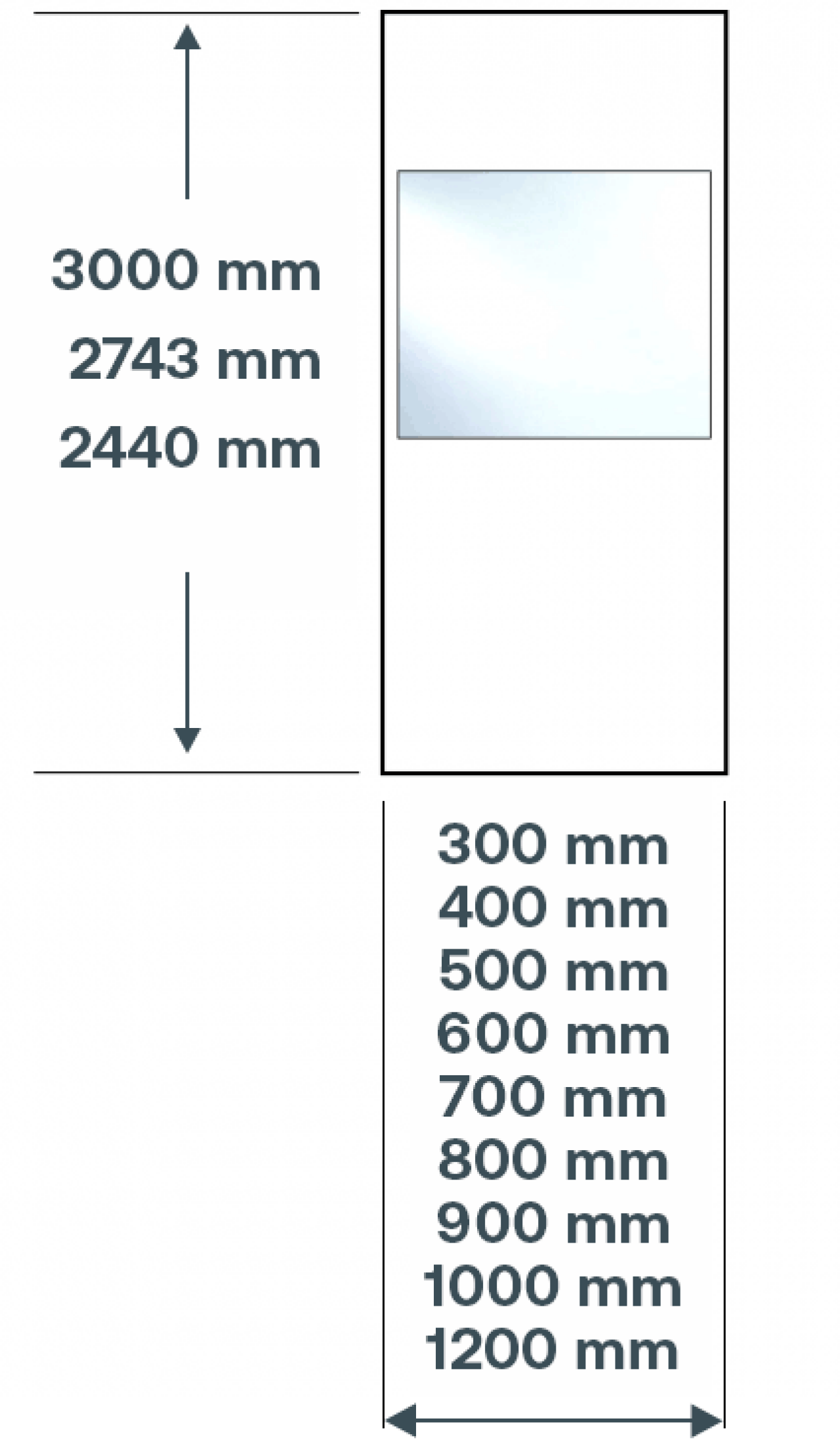

Bastion panel sizes.

Bastion Mesh Options

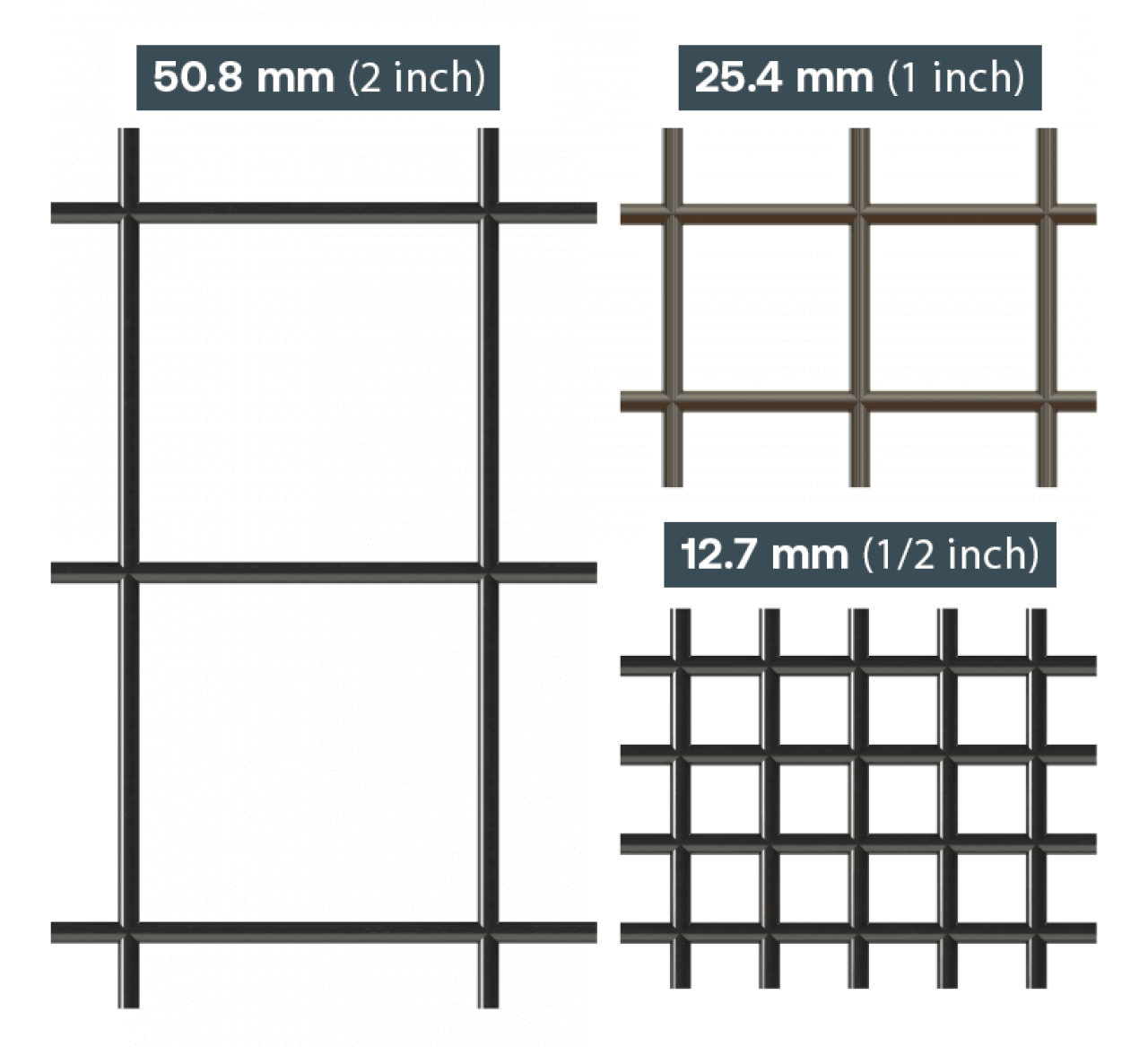

Our standard mesh is 50.8mm (2 inch), however other mesh options such as 25.4mm (1 inch) and 12.7mm (1/2 inch) are also available upon request.

Other Mesh Options

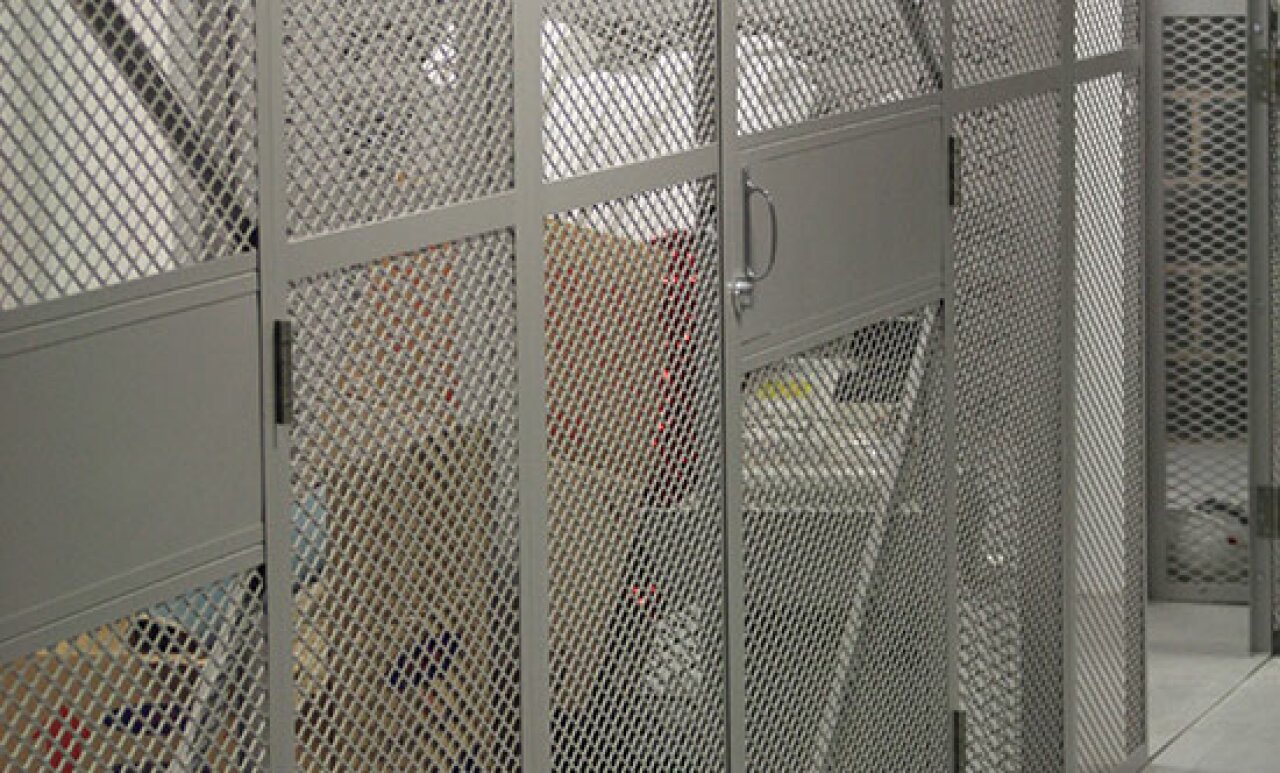

We also offer perforated sheets, woven mesh and expanded metal in place of standard mesh, to help you fulfil your mesh requirements.

Please contact us if you have any further questions.

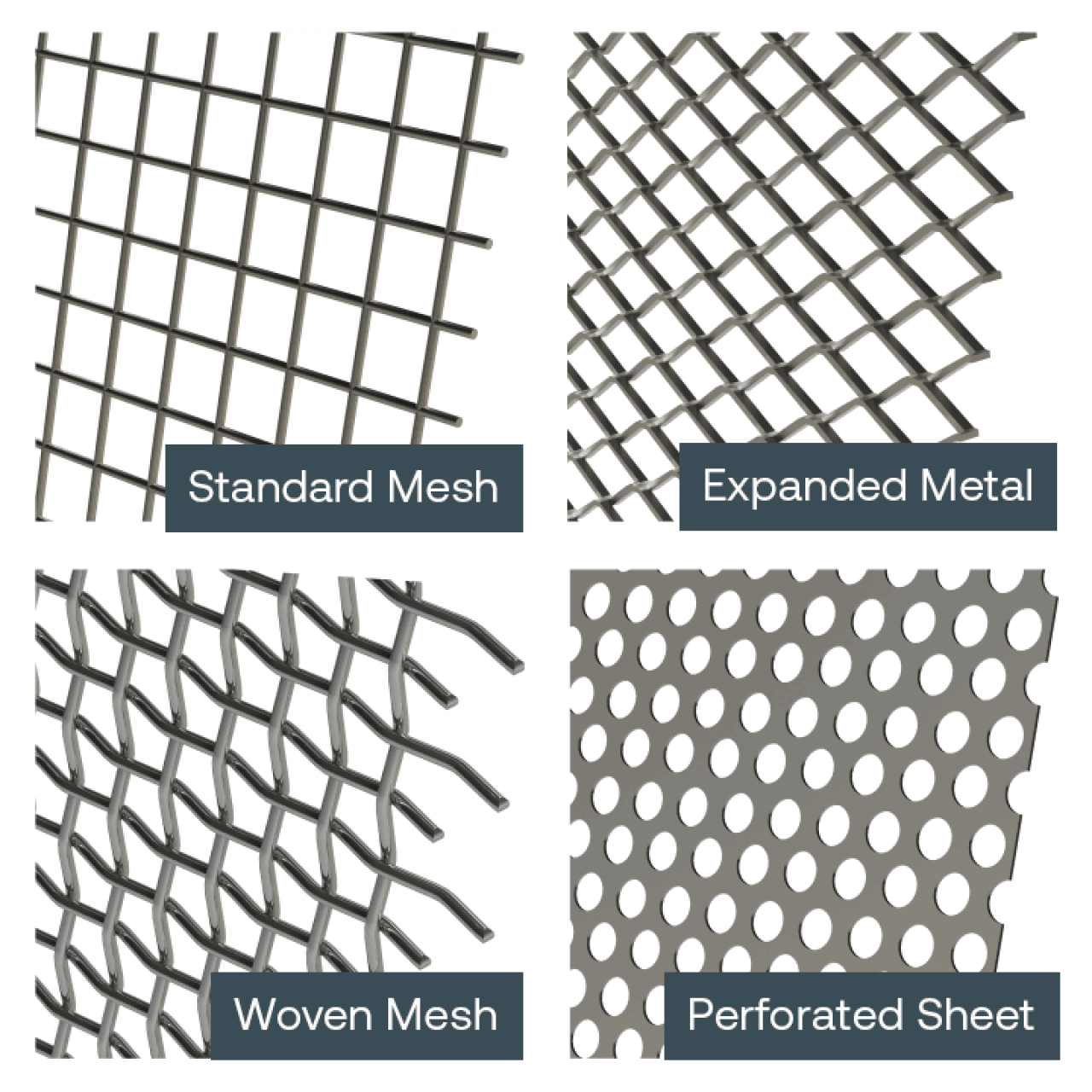

Other mesh options.

Door Options

Single Door

1000mm wide

2440 / 2743 / 3000 / 3657mm high

As standard the doors have 100mm double pressed hinges, 3 lever lock set.

Double Door

1800mm / 2400mm wide

2440 / 2743 / 3000 / 3657mm high

As standard the doors have 100mm double pressed hinges, 3 lever lock set and tower bolts for double doors.

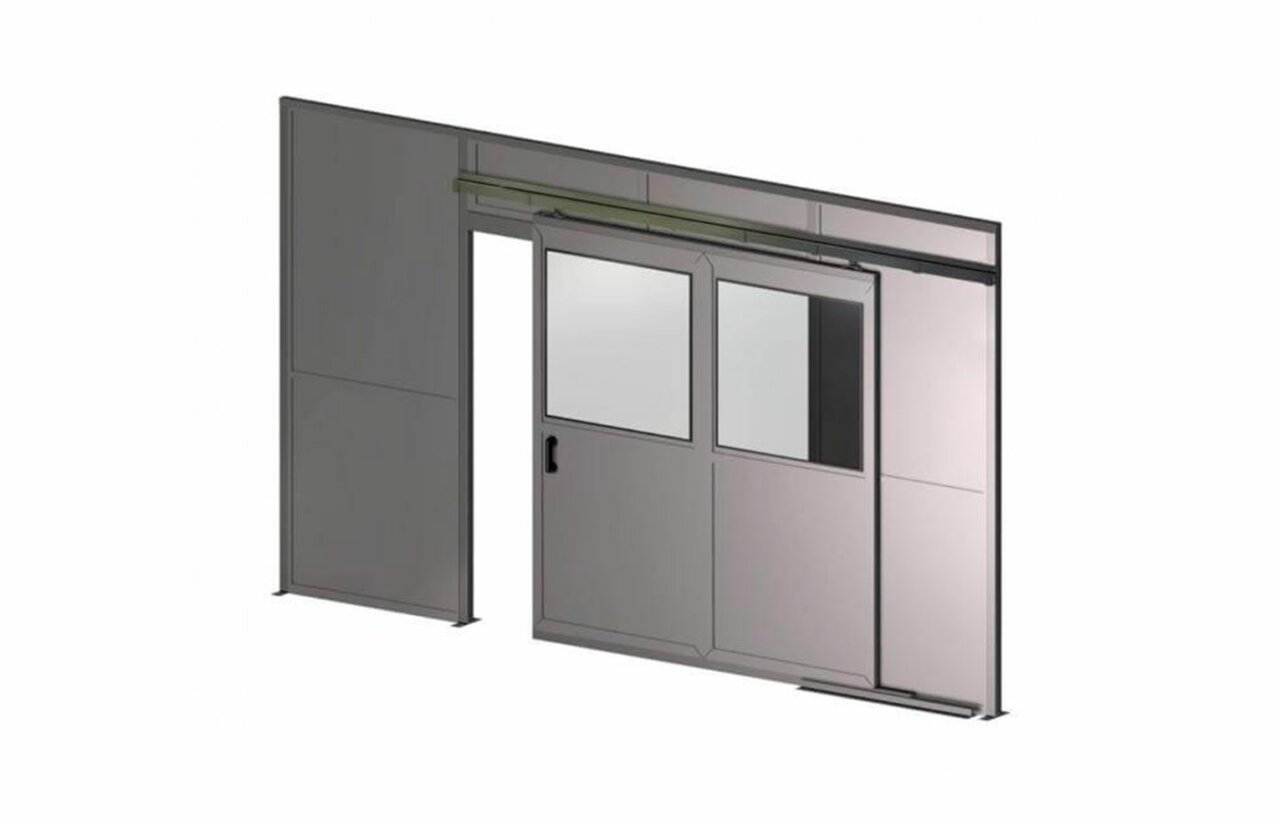

Sliding Doors

900 / 1200 / 1800 / 2400mm wide

2440 / 2743 / 3000 / 3657mm high

Bastion sliding doors are available in full mesh, full steel, steel/mesh and steel/glazed. All the sliding doors as standard have a black finish hard wearing pull handle and padlockable bolts.

Colour Options

Add some colour!

We always prepare our products to the highest of quality. All panels are supplied with a TGIC and lead-free powder coat to an average thickness of 70 microns.

Non-standard and corporate colours are also available upon request, as are anti-static/electro dissipative and antimicrobial powder coatings.

The Bastion system can also be offered in a Hot-Dipped Galvanised finish.

Panels are prepared and powder coated in our UK based factory.

* RAL 9006 available at an extra cost

Colour chart.
